Microsoft Deployment Toolkit Dynamic Applications - Using a Wildcard For Mappings

One of the questions in my recent SCCM Guru webcast asked if it was possible to use a wildcard in the ARPName table for the mappings. I was pretty sure I had done it in the past but couldn’t find my notes on it.

In order for a wildcard to work in the table, we need to update the query in the stored procedure.

The default query looks like this:  (ProductID0 was changed to DisplayName0 like I talked about in my webcast)

SELECT * FROM PackageMapping

WHERE ARPName IN

(

SELECT DisplayName0 FROM CM_DB.dbo.v_GS_ADD_REMOVE_PROGRAMS a, CM_DB.dbo.v_GS_NETWORK_ADAPTER n

WHERE a.ResourceID = n.ResourceID AND

MACAddress0 = @MacAddress

)

In order to use a wildcard in the mapping table, we need to modify the query to the following:

SELECT * FROM PackageMapping

WHERE EXISTS

(

SELECT 1

FROM CM_DB.dbo.v_GS_ADD_REMOVE_PROGRAMS a

INNER JOIN CM_DB.dbo.v_GS_NETWORK_ADAPTER n ON a.ResourceID = n.ResourceID

WHERE MACAddress0 = @MacAddress

AND DisplayName0 LIKE ARPName

)

Little different query, but this allows us to use a wildcard in the mapping table.

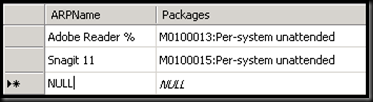

Your mapping table can then look this this:

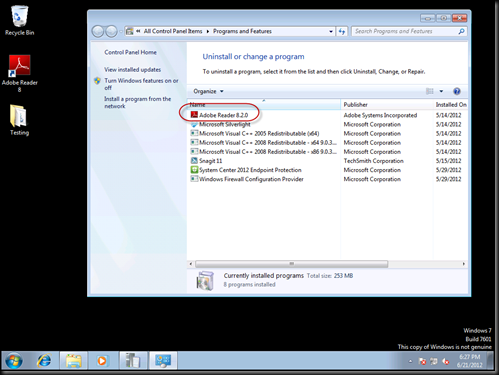

Here you can see a client with Adobe Reader 8.2.0 installed.

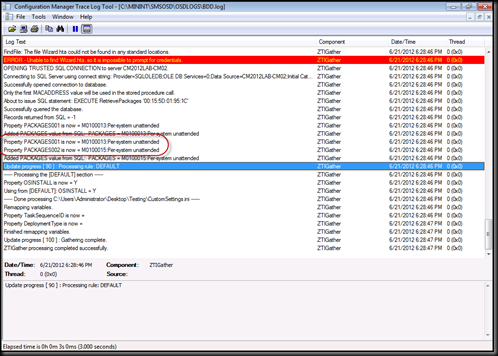

You can see the mapping successfully processed in the log.

There you go! Now you can save yourself a number of mappings for products. In my demos for the webcast I had 3 different mappings for versions of Adobe, now all condensed to a single entry.

-Chris
